장비 기계가공 판금 표면처리

Machining Capability

Type Maker Model Unit RPM Size (m) Location
5 Axis HAAS VR-11B 3 15,000 3.0 X 1.0 X 0.7 Busan
HAAS VF-5TR 3 15,000 0.6 X 0.3 X 0.4 Jinju
Okuma VMP-8 1 4,000 1.6 X 0.9 X 0.8 Jinju
Cincinnati C20V 1 3,600 3.0 X 0.8 X 0.6 Jinju
Doosan VC630 3 20,000 0.6 X 0.8 X 0.5 Busan
APEC 2 Spindle Gantry 1 24,000 10 X 12 X 0.7 Jinju
APEC G2020 1 24,000 2.0 X 2.0 X 1.0 Jinju
APEC G3020 2 24,000 3.0 X 2.0 X 1.0 Jinju
APEC MT1520 2 24,000 2.0 X 1.5 X 0.8 Busan
GROB G350 1 28,000 0.6 X 0.8 X 0.8 Busan
GROB G550 1 30,000 0.8 X 1.0 X 1.0 Busan
FOOKE Pro Liner 2 24,000 19 X 2.4 X 1.0 Jinju
Cincinnati 3 Spindle Gantry 1 10,000 18 X 2.1 X 0.7 Jinju
Hwa-Cheon D2 2 14,000 0.3 X 0.3 X 0.28 Busan
Hwa-Cheon D2 2 20,000 0.3 X 0.3 X 0.28 Busan
Hwa-Cheon M3 2 24,000 0.8 X 0.8 X 0.54 Busan
Sub Total 29
4 Axis HAAS VF-6SS 1 12,000 1.6 X 0.8 X 0.7 Busan
Gi-Heung   CENTER - 800 1 2,000 2.6 X 0.6 X 0.9 Jinju
3 Axis Hwa-Cheon VN-650 1 3,500 1.1 X 0.6 X 0.6 Jinju
Cincinnati C20V 1 6,000 3.0 X 0.8 X 0.6 Jinju
Cincinnati 2 Spindle Gantry 1 10,000 8.0 X 2.0 X 0.7 Jinju
Doosan BM2740 1 10,000 4.0 X 3.0 X 0.7 Jinju
Doosan VM750L 1 6,000 1.8 X 0.7X 0.8 Jinju
Doosan VM960 1 12,000 2.0 X 0.96 X 0.8 Busan
Lathe Doosan PUMA-2100 1 5000 D0.4 X 0.76 Jinju
Sub Total 9
Total 37

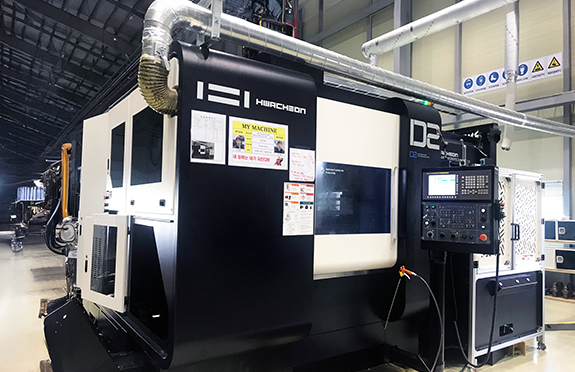

  • HWACHEON, D2

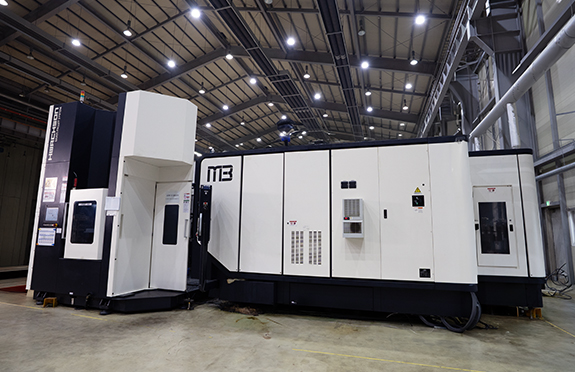

  • HWACHEON, M3

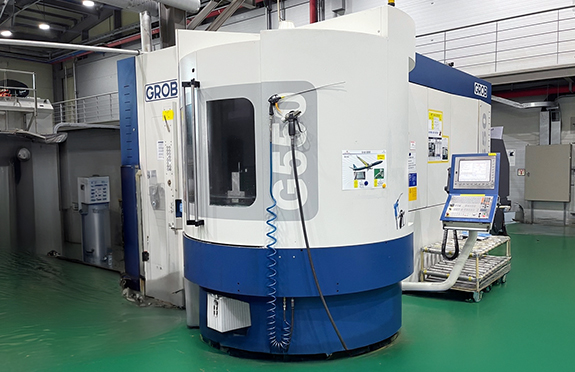

  • GROB, G550

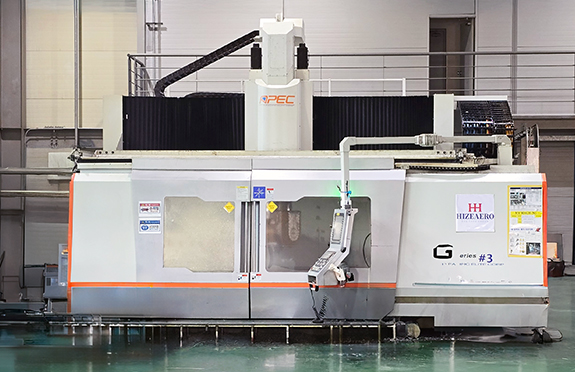

  • APEC, G3020

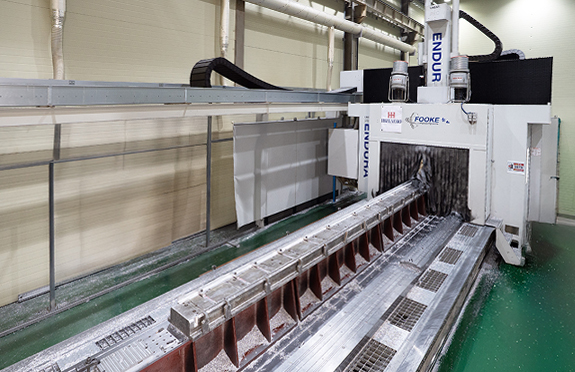

  • FOOKE, 5-Axis High Speed Gantry

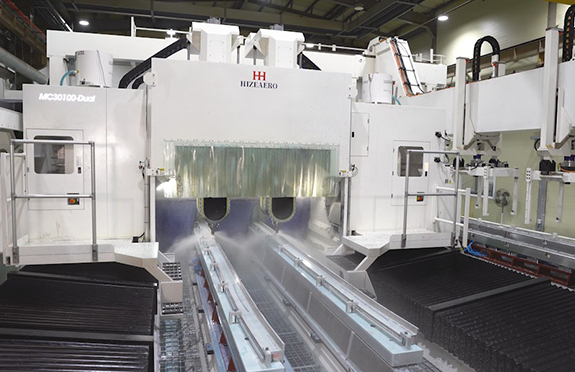

  • APEC, MC30100 2SP

Sheet Metal Capability

Maker Model Unit Spec. Work Size (mm) Location
Gookdo Shearing Machine 1 Thick.: 6mm Width : 4,100mm Angle : 0.5 ~ 1.45° 48” X 144” Jinju
Jungmin Machine Band Saw 1 645W X 645D mm 450 X 300 Jinju
Hyupsung CNC Router 2 40,000 rpm 2,500 X 1,250 X 150 Jinju
Win-Win Tech Stretch Wrap 1 20 ton Length : 3,100 Jinju
Win-Win Tech Skin Stretch 1 500 ton 2,438 X 4,000 Jinju
Avure Bladder Press 1 17,000 ton 600 X 1,830 X 175 Jinju
Anjeon Hydraulic Roll Forming Machine 1 4 Rolls 6 X 2,050 X 290 Jinju
Hwail Middle Press 1 80 ton 800 X 460 Jinju
Win-Win Tech Chip Former 1 15 ton 1,500 X 2,500 Jinju
Amada Press Brake 1 50 ton 2,000 X 4.5 Jinju
Eckold Kraft Former 1 250N/㎟, 8mm - Jinju
Hanil Solution Furnace 2 550℃ 1,500 X 2,000 X 3,000 800 X 800 X 1,000 Jinju
Daesung Refrigerator 2 -25℃ 4,000 X 3,700 X 6,000 1,500 X 1,500 X 4,000 Jinju
Hanil Aging Oven 1 250℃ 1,600 X 2,000 X 5,000 Jinju
Total 17

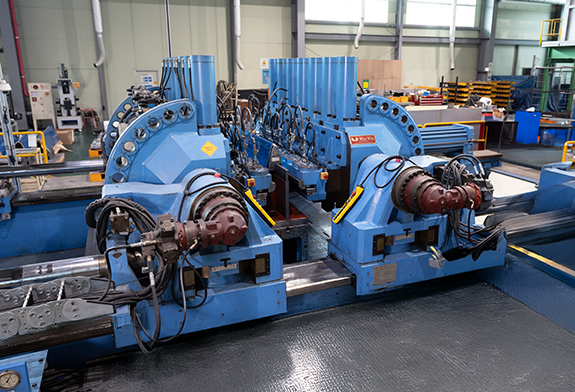

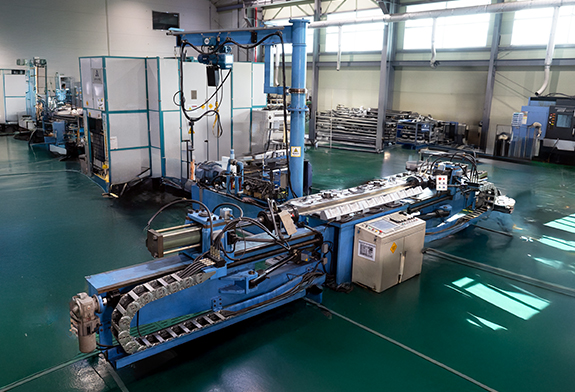

  • Stretch Wrap

  • Skin Stretch

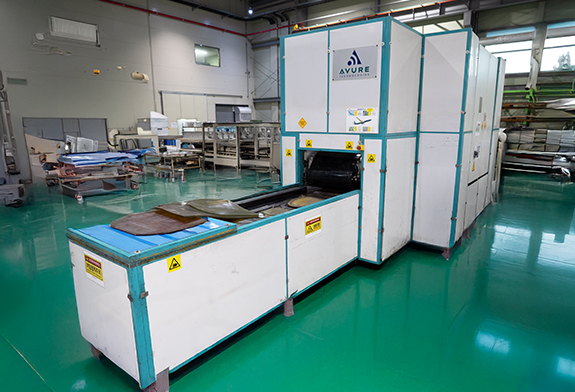

  • Bladder Press

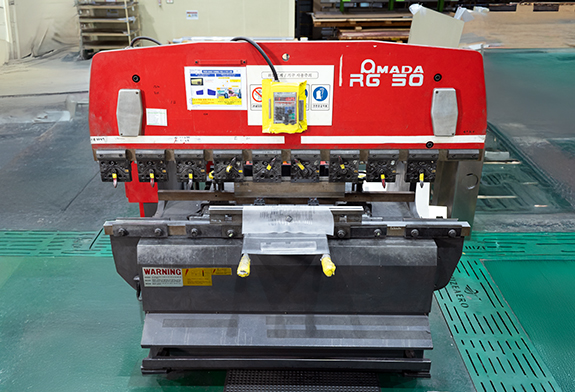

  • Press Brake

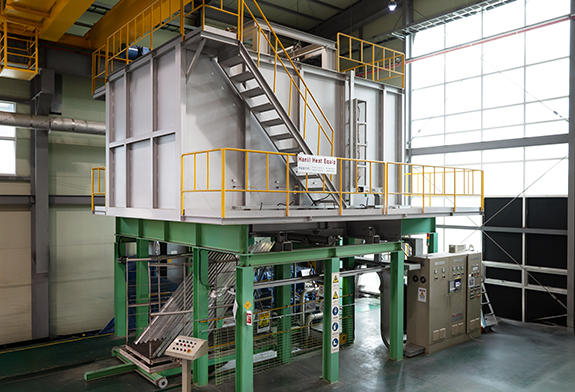

  • Solution Furnace

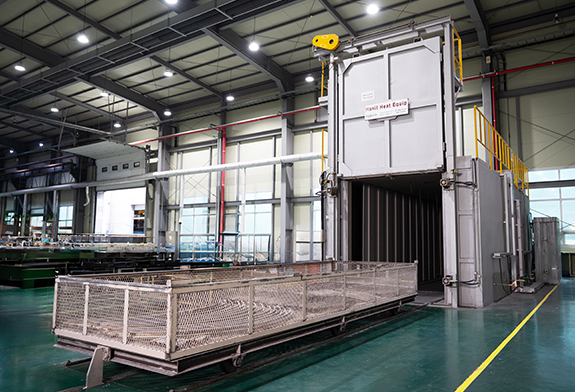

  • Aging Oven

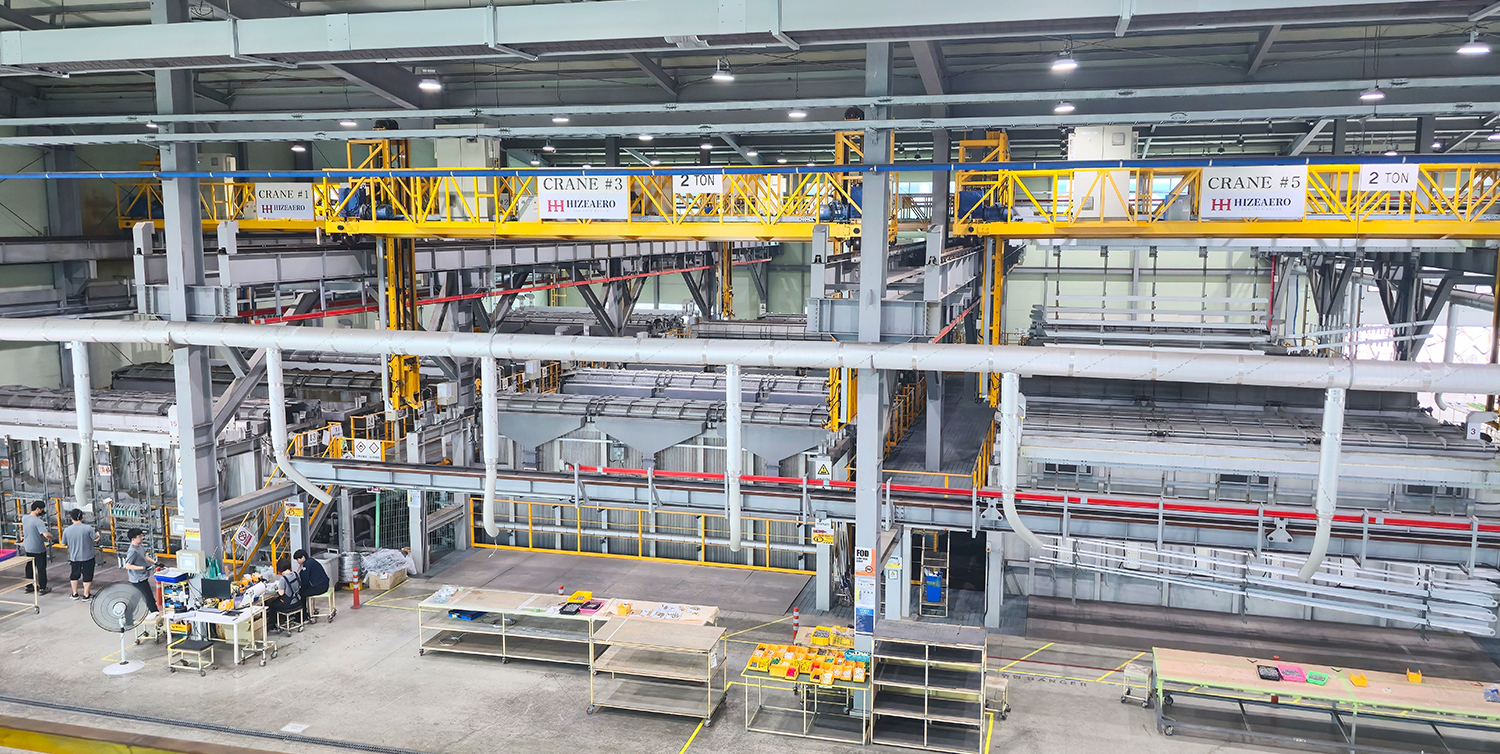

Surface Treatment Capability

Type FPI CCC CAA BSAA
SPEC BAC5423 BAC5719 BAC5019 BAC5632
Description Fluorescent
Penetrant
Inspection		 Chemical
Conversion
Coating		 Chromic Acid
Anodizing		 Boric Sulfuric
Acid Anodizing
Size 37,000 x 40,000 mm (1,000 x 3,000 x 8,000 mm 28 Tanks)

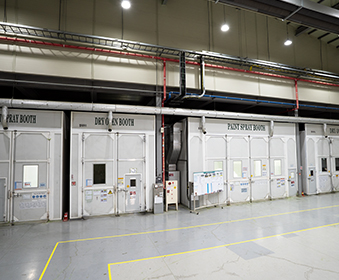

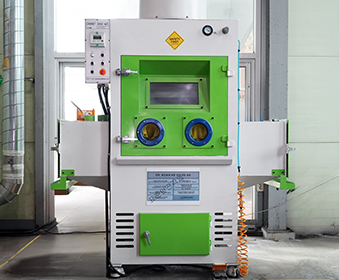

Type Shot Peen Grit Blast Paint
SPEC BAC5730 BAC5748, Type II, Class1 BAC5736, BAC5710, BAC5882, BAC5845, BAC5639, BAC5325, BAC5811, BAC5793, BAC5755
Description Shot Peen
(Intensity Capability : 0.003" ~ 0.010"A)		 Dry Abrasive Blasting Primer, Teflon, Top Coat, Anti-static Coating
Size(mm) 500 x 1,500 x 10,000
Media size : ASH230		 1,810 x 800 x 2,034
Media Size : Aluminium oxide 120 grit		 12,000 x 30,000
3 factories
(Jin-ju, Sa-cheon, Busan)

3D Printer / Scanner

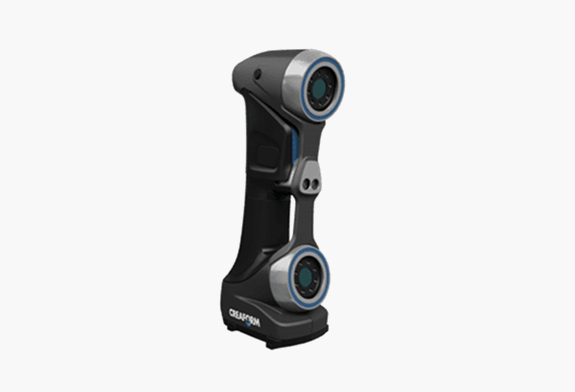

  • 3D Scanner

    Model
    AMETEK Handy Scan 3D
    Weight
    0.85kg
    Size
    122 x 77 x 297mm
    Scan size
    275 x 250mm
    Accuracy
    ~0.030mm

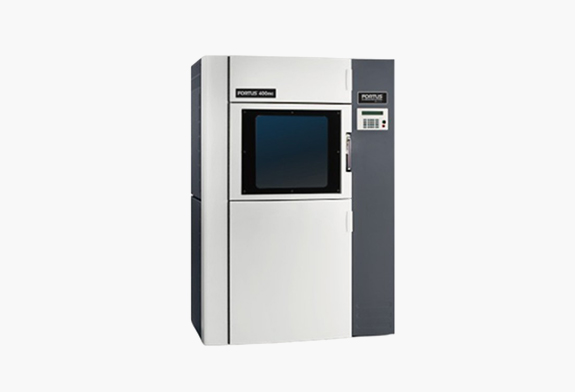

  • 3D Printer

    Model
    FORTUS 400mc
    Weight
    1,593kg
    Size
    1,281 x 896 x 1,962mm
    Scan size
    400 x 355 x 406mm
    Accuracy
    ±0.127mm

적용

  • Engine Mount Fitting

  • Real Size

  • B787 FTE FAJ

  • 80:1 Size

Inspection Equipment

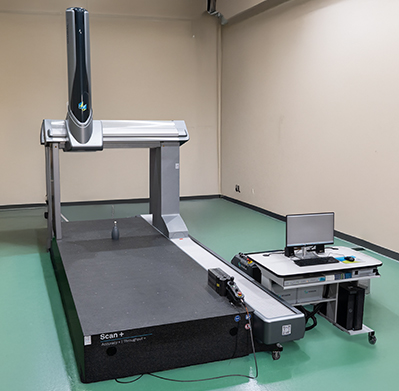

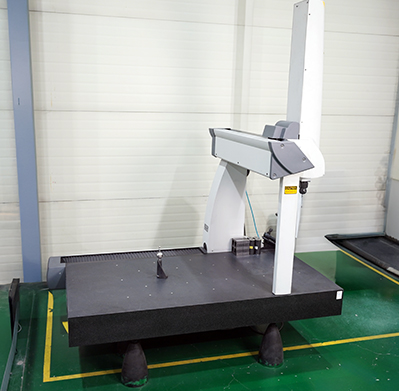

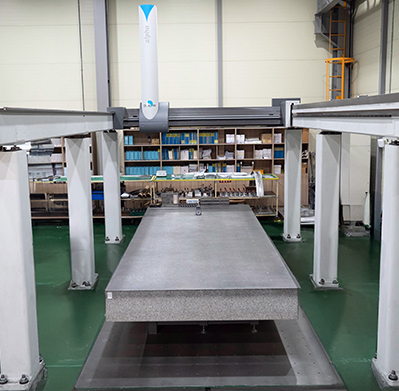

CMM Small Middle Large
Model Brown & Sharpe
Global Classic 9158		 GLOBAL S Scan+ ALPHA Performance 256015
Measuring
Range(m)		 0.8 x 1.5 x 0.9 1.2 x 3.0 x 1.0 2.5 x 6.0 x 1.5
Accuracy 2.9 + 3.3L/1000 1.7 + 2.8L/1000 5.7 + 4.2L/1000

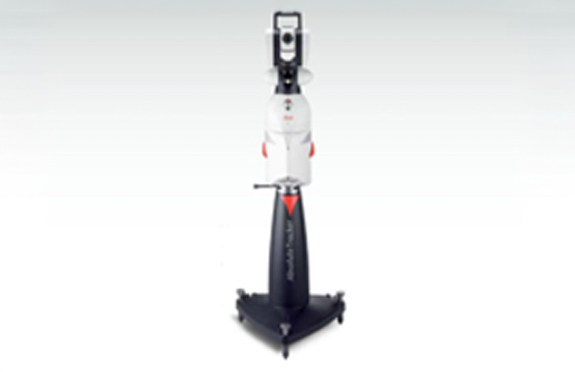

  • Laser Tracker

    Model
    LEICA Absolute Tracker AT901-B
    Measuring Range
    2-35m (Horiz: ±.235º / Vert: ±.45º)
    Accuracy
    15㎛ + 6㎛/m

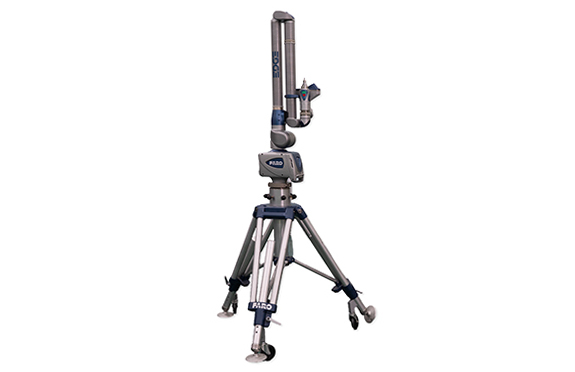

  • Articulating

    Model
    FARO Arm Edge HD
    Measuring Range
    Spherical Diameter 2.7m
    Accuracy
    ±29㎛ (±0.0011 inck)
